LV124 / LV148 MONITORING FOR 12V, 24V AND 48V
VW 80000, BMW GS95024-2-1, ISO 16750, GMW 3172, ISO 21780, MBN 10567, VW82148, VDA 320, MAN 3499 etc.
WINNER OF THE WiR TECHNICAL INNOVATION AWARD
This innovative modular concept, which gives us the opportunity to monitor a high number of pins in parallel, with a high resolution of up to 10us, as required in the LV124, allows us to make a deeper analysis of our products and especially find sporadic errors earlier in the development phase. –Ralf Zimmermann, Technical Project Lead – Continental™ AG
KEY BENEFITS
TUBE ANALYZER – VOLTAGE MEASUREMENT
Layouts supporting up to 96 voltage channels +/-60V or +/-10V
TUBE ANALYZER – CURRENT MEASUREMENT
Layouts supporting up to 12 current channels +/-150A or +/-5A
100 kHz monitoring and logging on all ECU power pins is performed
100kHz monitoring and logging on current pins is performed
100% LV124 / LV148 norm confomity on precision is guaranteed (DAKKS calibrated)
Monitoring and logging on 7 seamless ranges on +/-150A
Measurement precision from sleep to active current ranges is guaranteed
Integration capabilites for CANoe / CANape log files into PDF reports
Time-synchronized display of power lines and communication lines into PDF reports
Integration capabilites for Tube Analyzer log files into CANoe / CANape tools
Ready-for-automation, e.g. integrated in the RTStand LV124 fully-automated testing systems
LOGS AND PDF REPORTS
Most powerful feature for analysis, according to our customers:
Time-synchronized display of power lines and bus communication data into PDF reports
LV 124 E07 – current measurement of a “normal” ECU
LV 124 E07 – current measurement of a “defect” ECU
Tube Analyzer and CANoe busload data displayed time-synchronized in PDF reports

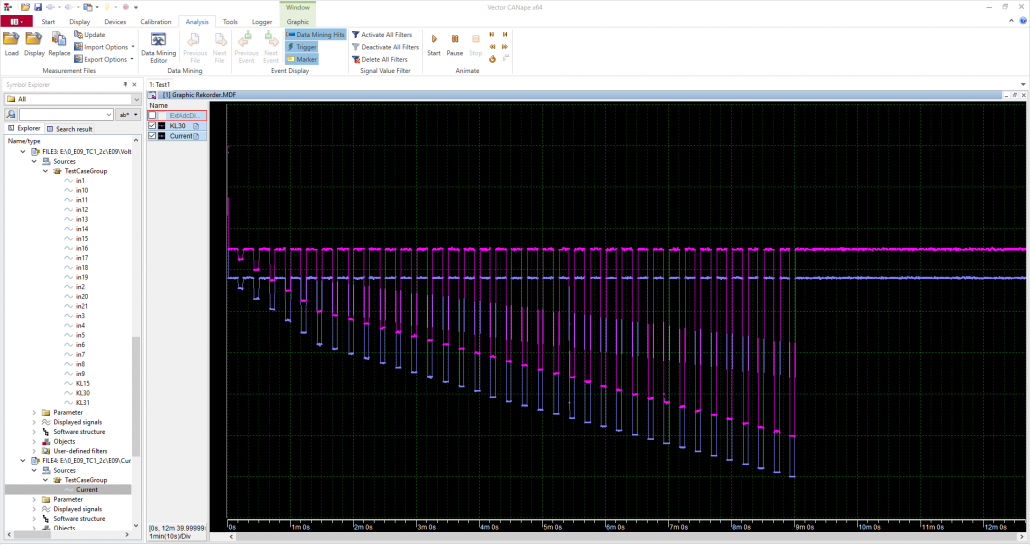

Tube Analyzer data displayed in CANape
